| Model / Type | EY7960LS2S |
|---|---|
| Voltage | 21.6V |
| Battery capacity accord. to IEC (technology) | 4.2Ah (Li-ion) |
| Charging time (usable / full charging) | 65 / 85min. |
| Speed at no load (low / igh) in rpm | 100 - 400 / 350 - 1,500 |
| Max. torque (stalling / instant torque) | 42 / 63Nm |
| Percussion mechanism (blows per minute) | 7,200 - 27,000 |
| Max. drilling diameter (in wood / in metal / in masonry) | 38 / 13 / 13mm |
| Max. holesaw size | 65mm (in wood) |
| Size (W x L x B) | 75 x 232 x 255mm |
| Weight (incl. battery) | 2.50kg |
| Standard accessories | 2 x battery EY9L62B charger EY0L82B incl. plastic box |
| Battery capacities | |||
|---|---|---|---|
| Voltage | 21.6 V | ||
| Model | EY7960LS2S | ||
| Battery | EY9L62B(LS) | ||
| Screwing | Wood screws in yellow pine* | Ø 4.1mm x 25mm | 1.700 |
| Wood screws in yellow pine* | Ø 4.2mm x 75mm | - | |
| Wood screws in yellow pine* | Ø 6mm x 80mm | - | |
| Wood screws in yellow pine** | Ø 8mm x 80mm | 570 | |
| Self-drilling screws in SPC* | Ø 3mm x 13mm t = 1.2mm | - | |
| Self-drilling screws in SPC* | Ø 4mm x 13mm t = 1.6mm | 1.200 | |
| No plug screws in mortar | Ø 6mm x 45mm | 1.200 | |
| Drilling | Holes in plaster board + Plywood/wooding core* |
Plaster board 12.5mm + Plywood 12mm Ø 68mm × 24.5mm |
190 |
| Holes in plaster board + Plywood** |
Plaster board 12.5mm + Plywood 12mm Ø 125mm × 24.5mm |
45 | |
| Holes in SPC* | Ø 13mm t = 1.6mm | - | |
| Holes in SPC/hole saw* | Ø 21mm t = 1.6mm | 65 | |
| Holes in SPC/hole saw** | Ø 33mm t = 1.6mm | 65 | |
| Holes in mortar* | Ø 6.5mm x 30mm | - | |
| Holes in mortar* | Ø 10mm x 30mm | 120 | |
| Holes in masonry* | Ø 5mm × 40mm depth | 140 | |
| Holes in yellow pine* | Ø 18mm x 120mm | 150 | |
| Holes in yellow pine** | Ø 30mm x 40mm | 210 | |
| Holes in yellow pine** | Ø 36mm x 40mm | 160 | |
| * High mode ** Low mode | |||
Our highly efficient gear mechanism conducts the power of the motor directly without any power-loss. This enables high power Max 63Nm drilling for heaviest of applications - every job, every day.
* Percussion featured in EY7960 model only
The Tough Tool IP* concept includes features such as sensors which monitor batteries and protect against overheating and ‘over-discharge’. This technology ensures reliable, safe and powerful operation for the user.
1: Switch

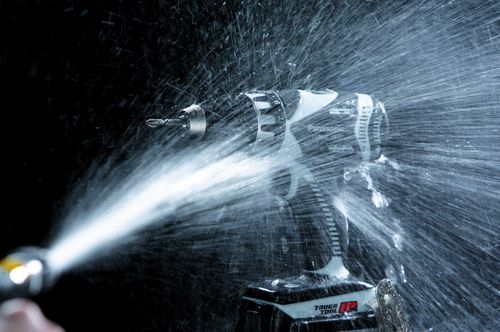

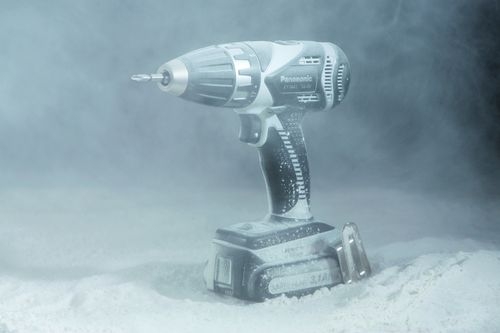

Increased sealing helps protect against water and dust.
2: Electronics
The electronic circuits in control panel and battery pack are covered by a urethane layer for added dust and water protection.
3: Battery
The battery cells are designed to avoid intrusion of moisture.
*IP=INTELLIGENT POWER TOOL
